D-11 DIP Saw Resonator 3 Pin With Electrostatic Sensitive Device For Remote Control

Brand Name : SJK

Model Number : D-11 433.92MHz

Certification : SGS,ROHS,REACH

Place of Origin : China

MOQ : 1000pcs

Payment Terms : T/T,

Supply Ability : 30Kpcs per Month

Delivery Time : 6-8weeks

Packaging Details : 1000pcs

Model : D-11 SAW Resonator

Frequency Tolerance : +/- 50ppm

Insertion Loss : 2.1dB Max.

Size : 8.36u00d73.45u00d71.7mm

Number Of Pins : 3

Package Type : DIP

Drive Level : 100mW

Aging : +/- 5ppm per year

Shunt Capacitance : 5pF

Operating Temperature Range : -20°C to +70°C

Frequency Stability : +/- 50ppm

Load Capacitance : 30pF

Storage Temperature Range : -40°C to +85°C

Contact Now

D-11 DIP Saw Resonator 3 Pin with Electrostatic Sensitive Device for Remote Control

Features

1-Port SAW Resonator

Metal Case D-11

Electrostatic Sensitive Device (ESD)

Package Size with 8.3*3.45*1.7mm

Application: Remote Control, Security, Alarm, etc.

RoHS Compliant & Pb Free

Specifications

P/N	Center Frequency (MHz)	Frequency Tolerance (kHz)	Insertion Loss (dB)	Package Type
R303.825	303.825	±30 /±75	1.5	D-11
R303.875	303.875	±30 /±75	1.5	D-11
R315	315.000	±30 /±75	1.3	D-11
R316.8	316.800	±30 /±75	1.3	D-11
R330	330.000	±30 /±75	1.5	D-11
R350	350.000	±30 /±75	1.5	D-11
R360	360.000	±30 /±75	1.4	D-11
R370	370.000	±30 /±75	1.5	D-11
R390	390.000	±30 /±75	1.4	D-11
R418	418.000	±30 /±75	1.5	D-11
R433	433.920	±30 /±75	1.5	D-11
R868.35	868.350	±75 /±150	2.1	D-11

For other frequencies and specifications, please contact our sales department.

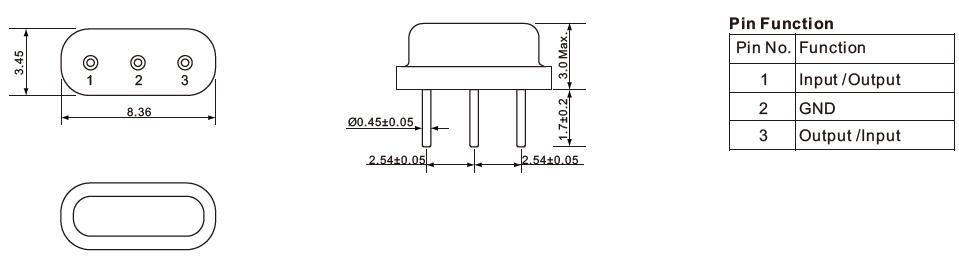

Dimensions [mm]

D-11 DIP Saw Resonator 3 Pin With Electrostatic Sensitive Device For Remote Control
